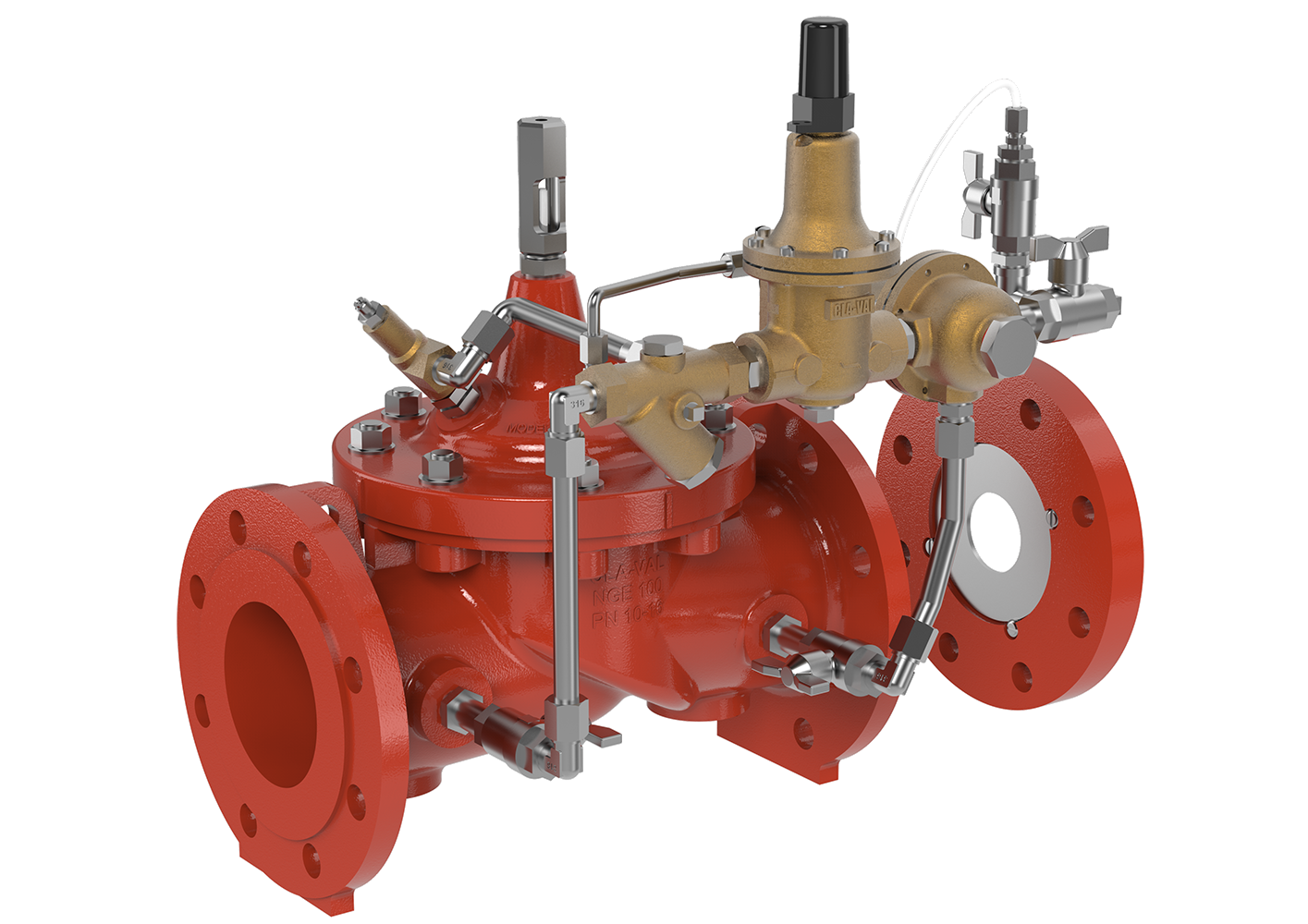

CLA-VAL 45-01 : Flow Control AND Pressure Sustaining Valve
The CLA-VAL 45-01 is designed to limit flow rate to a preselected maximum rate, regardless of changing line pressure. The pilot control responds to the differential pressure produced across an orifice plate installed downstream of the valve. The pressure sustaining feature maintains a minimum upstream pressure.
The CLA-VAL 45-01 is installed where water supply to a lower system (industrial user, housing area, etc.) must be limited to a maximum flow rate and when a minimum upstream pressure in a high pressure main and/or an upstream distribution network must be sustained.
Included accessories :
- Isolation valves 3/8" (upstream and downstream)
Optional accessories :
- Stem position indicator [X101]
- Pressure gauge [0-8 bar] & [0-16 bar]
